CAPACITY
-
- Cooling – Min ~ Rated ~ Max(kW)
- 0.88/3.52/3.87
- Cooling – Min ~ Rated ~ Max(Btu/h)
- 3,000/12,000/13,200
-
- Heating – Min ~ Rated ~ Max(kW)
- 0.88/3.52/4.04
- Heating – Min ~ Rated ~ Max(Btu/h)
- 3,000/12,000/13,800
POWER INPUT
-
- Cooling – Min ~ Rated ~ Max(W)
- 140/1,085/1,400
- Heating – Min ~ Rated ~ Max(W)
- 140/975/1,550
RUNNING CURRENT
-
- Cooling – Min ~ Rated ~ Max(A)
- 0.70/5.00/6.50
- Heating – Min ~ Rated ~ Max(A)
- 0.70/4.80/7.50
EER
-
- EER(W/W)
- 3.24
- EER((Btu/h)/W)
- 11.06
COP
-
- COP(W/W)
- 3.61
- COP((Btu/h)/W)
- 12.31
POWER SUPPLY
-
- Ø, V, Hz
- 1, 220 ~ 240, 50
AVAILABLE VOLTAGE RANGE
-
- Available Voltage Range(V)
- 187 ~ 276
POWER FACTOR
-
- Cooling/Heating(%)
- 94/94
MOISTURE REMOVAL
-
- Moisture Removal(l/h)
- 0.80

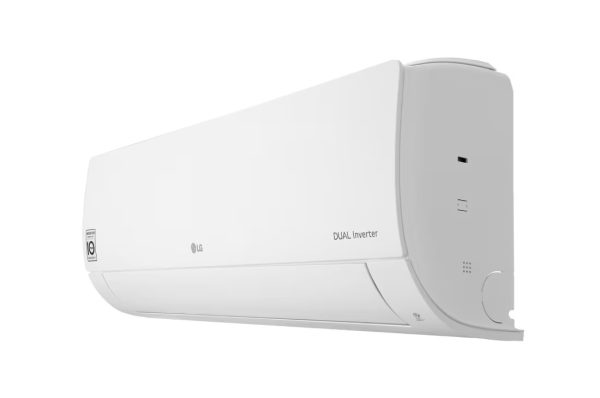

INDOOR
-
- Air Flow Rate – Cooling, Max/H/M/L(m³/min)
- 12.5/9.3/7.2/2.7
- Air Flow Rate – Heating, Max/H/M/L(m³/min)
- 13/10/7/5.5
-
- Sound Pressure Level – Cooling, H/M/L/SL(dB(A))
- 42/36/28/21
- Sound Pressure Level – Heating, H/M/L(dB(A))
- 42/36/31
-
- Dimensions (W×H×D) – Net(mm)
- 837 × 308 × 189
- Dimensions (W×H×D) – Shipping(mm)
- 909 × 383 × 256
-
- Weight – Net(kg)
- 8.5
- Weight – Shipping(kg)
- 10.6
-
- Exterior Color Code
- Munsell 7.5BG 10/2 (RAL 9016)
OUTDOOR
-
- Air Flow Rate – Max(㎥/min)
- 27.0
- Sound Pressure Level – Cooling, Rated(dB(A))
- 51
-
- Sound Pressure Level – Heating, Rated(dB(A))
- 53
- Dimensions (W×H×D) – Net(mm)
- 717 × 483 × 230
-
- Dimensions (W×H×D) – Shipping(mm)
- 837 × 530.5 × 332
- Weight – Net(kg)
- 26.4
-
- Weight – Shipping(kg)
- 30.1
- Max. Fuse Size(A)
- 20
-
- Exterior Color Code
- Munsell 9.54Y 8.34/1.31 (RAL 9001)
- Operation Range – Cooling(℃ DB)
- 18 ~ 48
-
- Operation Range – Heating(°C DB)
- -5 ~ 24
- Operation Range – Heating(℃ WB)
- -5 ~ 18
CIRCUIT BREAKER
-
- Circuit Breaker(A)
- 15
POWER SUPPLY CABLE
-
- Power Supply Cable(No.×㎟)
- 3 × 1
POWER AND COMMUNICATION CABLE
-
- Power and Communication Cable(No.×mm²)
- 4 × 0.75
PIPING
-
- Size – Liquid(mm)
- Ø 6.35
- Size – Gas(mm)
- Ø 9.52
-
- Connections Method – Indoor/Outdoor
- Flared/Flared
DRAIN HOSE SIZE
-
- O.D, I.D(mm)
- 21.5, 16.0
BETWEEN INDOOR & OUTDOOR
-
- Piping Length – Min/Standard/Max(m)
- 3.6/7.5/15
- Piping Length – No Charge(m)
- 7.5
-
- Max. Elevation Difference(m)
- 7
- Piping Connection Heat Insulation
- Both liquid and Gas Pipes
REFRIGERANT
-
- Type
- R410A
- Pre Charge(g)
- 850
-
- Additional Charge(g/m)
- 20
- Control
- Capillary
-
- Global Warning Potential
- 2087.5
- t-COâ‚‚ eq
- 1.774
DEFROST METHOD
-
- Defrost Method
- Reverse Cycle
TOOL CODE(CHASSIS)
-
- Indoor/Outdoor
- SJ/UA3
COMPRESSOR
-
- Type
- Twin Rotary
- Model
- GST102MAA
-
- Motor Type
- BLDC
- Oil Type/Maker
- POE (RB68A)/Sun Oil or Jx Nippon
-
- Oil Charge(cc)
- 280
- Manufacturer/Country of Origin
- LG Electronics/China
FAN(INDOOR)
-
- Type
- Cross Flow Fan
- Motor Output (W)
- 30
FAN(OUTDOOR)
-
- Type
- Propeller Fan
- Motor Type
- AC
-
- Motor Output(W)
- 25
- Motor Insulation
- Class E
-
- Motor Enclosure/Ingress Protection
- TEAO/IP24
HEAT EXCHANGER
-
- Evaporator – Material, Tube/Fin
- Cu/Al
- Evaporator – (ø x Row x Column x FPI x L) x Qty.(#1)
- (ø7 x 2 x 15 x 21 x 616.8) x 1
-
- Evaporator – Corrosion Protection
- PCM
- Evaporator – Fin Type
- Slit
-
- Condenser – Material, Tube/Fin
- Cu/Al
- Condenser – (ø x Row x Column x FPI x L) x Qty.(#1)
- (ø7 x 2 x 22 x 18 x 667) x 1
-
- Condenser – Corrosion Protection
- Gold
- Condenser – Fin Type
- Louver
